Overview

ASPMDiv MAIN.png
The ASPM Diversions module of ASPM provides information on flight diversions as detected by an algorithm written by Mitre. Dates and times are based on the local date and time at the planned destination airport. They can be translated to GMT by applying the appropriate GMT offset for the planned destination airport.

ASPM Diversions data can be viewed on the FAA Operations & Performance Data Web site.

For more information about diversion data, please see the specific definitions for Diversions:

ASPM Diversions: Definitions of Variables


For more information about the ASPM system, see Aviation System Performance Metrics (ASPM).

My Reports

My Reports displays a list of reports you saved after running your query. You may save a report after you enter your search criteria and select the 'Run' button. Then you may name your report and save it for future use. Selecting the information button will display a window listing the selection criteria used for the report. Selecting the deletion button will delete the report.

Saved Reports

This section lists reports that you have saved after clicking the 'Run' button. By clicking on the report name, you will be able to modify or update the saved report with new criteria. Just click on any of the desired tabs to change output, dates, airports, grouping, and filter options. For more information about saving reports, see the Run section.

Output

ASPMDiv OUTPUT.png
The Output section allows you to choose how to display the file format for your report.

Display

In Diversions, you may display the data according to the following options:

Format

In all ASPM views, you may choose between several options for the output of the data:

  • HTML: The requested data are presented in a Web browser format.
  • MS Excel
  • MS Word


Dates

ASPMDiv DATES.png
In Diversions, you may restrict your search to specific time ranges.

The following options are available:

  • Days
  • Months
  • Years (calendar and fiscal)
  • Range
  • Period

Please verify that your selection is for a time period in which data are available. Selected options will appear on the right.

Airports

ASPMDiv AIRPORTS2.jpg
In Diversions, you may select airports to obtain information about their departure and arrival activity.

When the default 'Quick Entry Mode' checkbox is selected, you can select airports by entering the airport code (or several codes separated by a space) to search for matching airports. By deselecting the 'Quick Entry Mode' option, you will be able to enter airport ID, name, or partial name of the airport to search for a list of matches. The autocomplete feature will suggest possible names of airports in a drop down menu. You may also select predefined groups such as ASPM 77, OPSNET 45, or Core to insert a set of airports. To include all airports, do not select any.

Carriers

ASPMDiv CARRIERS.png
In Diversions, you may select specific airline carriers for your report. For a list of available FAA carriers, see ASPM Carriers.

When the default 'Quick Entry Mode' checkbox is selected, you can enter full name or full code of the carrier to search for matches. By deselecting the 'Quick Entry Mode' option, you will be able to enter full or partial name or code of carrier to search for a list of matches. The autocomplete feature will suggest possible names of carriers in a drop down menu. To include all carriers, do not select any.

Grouping

ASPMDiv GROUPING.png
Grouping options are only available for the Diversions Summary Report. In this section, you may group the fields consistent with your desired report format. At least one selection has to be made. Click the green area beside the filter in the desired order. Select the 'Plus' button to choose the groupings for the report. Selected fields will appear on the right. Selected fields can be removed by selecting the 'Minus' button next to each selected field.

The grouping options available are:

  • Date
  • Local Hour
  • Planned Destination
  • Diversion Airport
  • Origin Airport
  • Carrier


Filters

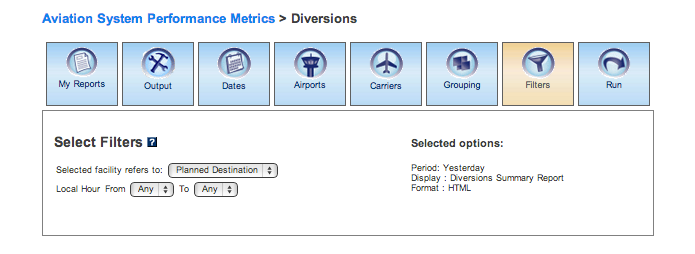

ASPMDiv Filters.png
In this section, you may select supplemental filters for two of the reports in the Diversions module. Users may restrict their search by selecting the available options:
  • Selected arrival refers to: (Planned Destination, Diversion Airport, Origin Airport)
  • Local Hour From... To...

For more information about these topics, please see the definitions of variables for this view.

Run

Selecting the 'Run' option will run the query and create a report. In the ASPM system, you may save the search criteria you used to create the report by entering a name for the report and clicking the 'Save' button. From then on, the report name will appear in the 'My Reports' section.

Definitions of Variables

For more information about these topics, please see the specific definitions for Diversions:

ASPM Diversions: Definitions of Variables
