ASPM AERO: Facility AERO Report

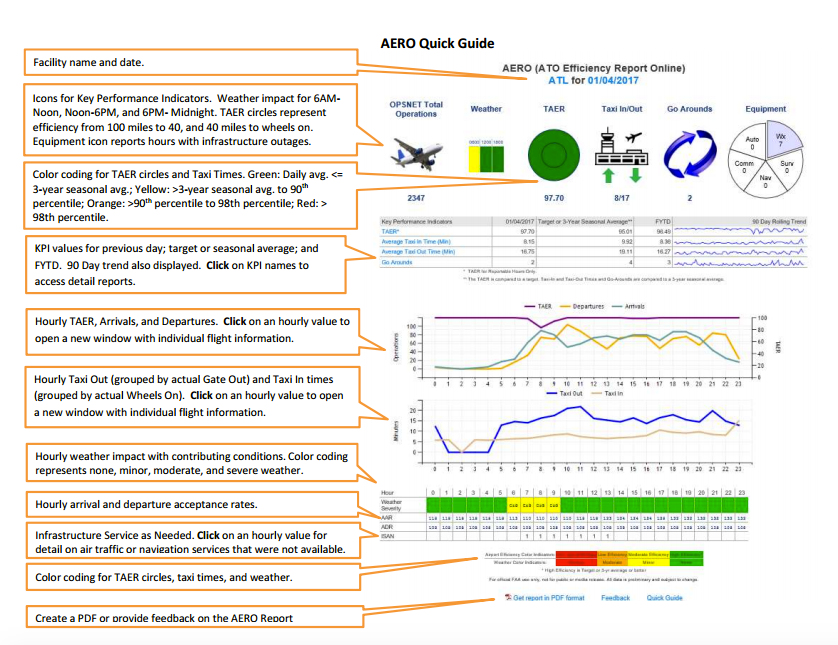

AERO ISAN QuickGuide

The Facility AERO Report of ASPM AERO Manual displays Core Airport daily performance of a single facility with context on one sheet. Facility detail information is provided by clicking on the facility's code as hyperlink.

The Facility AERO Report can be displayed as a PDF document by clicking on the appropriate link at the bottom of the page.

For information about how to create a Facility AERO Report, see the ASPM AERO Manual and the Quick Guide linked at the bottom of the actual report page.

Field definitions are available in ASPM AERO: Definitions of Variables.

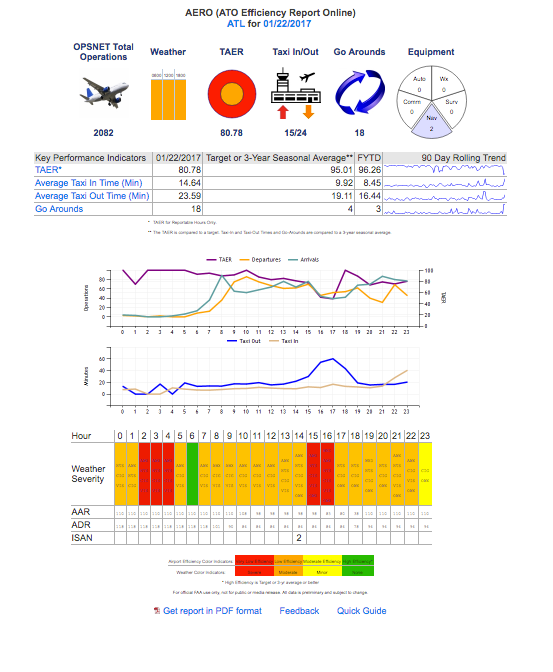

AERO Report

The Facility AERO Report displays the following information:

• OPSNET Total Operations
• Weather
• TAER (Click on KPI names to access detail reports)
• Taxi In/Out
• Go Arounds
• Equipment
• Hourly TAER, Arrivals, and Departures (Click on an hourly value to open a new window with individual flight information.)
• Hourly Taxi Out (grouped by actual Gate Out) and Taxi In times (grouped by actual Wheels On). (Click on an hourly value to open a new window with individual flight information.)
• Hourly weather severity with contributing conditions. Weather color coding represents none, minor, moderate, and severe

weather conditions.

• Hourly arrival and departure acceptance rates.
• ISAN (Infrastructure Service as Needed).

Color coding for the icons representing TAER 100-to-40 and 40-to-On crossing times, and Taxi Times, represents the following:

• Green: Equal to or better (shorter times)than the 3-year seasonal avg.
• Yellow: From 3-year seasonal avg. to 90th percentile;
• Orange: From 90th percentile to 98 percentile;
• Red: Greater than the 98 percentile value.

Color coding for weather represents:

• Green: No weather factors impact
• Yellow: Minor weather factors impact
• Orange: Moderate weather factors impact
• Red: Severe weather factors impact.

For more information on weather factors, see the Weather Factors Manual.

Clicking on the hyperlink values in the table will open up a new tab with the daily values corresponding to the selected variables. Results can be displayed according to the following options:

• Lines
• 3D Lines
• Columns
• Bars
• 3D Bars
• Areas
• 3D Areas

For information about other available reports in the AERO module, see Display section.
